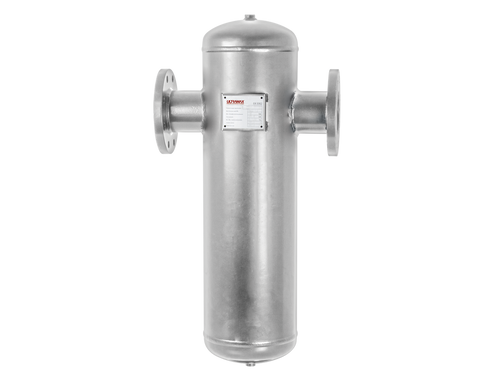

Stainless Steel Condensate Separators (2 Port) 250 DN, 8520 / 5015

Product Description

Product Code/SKU: USFH142SSPipe size (DN)=250,Flow Rate (Nm3/h x SCFM)=8520 / 5015USFH and UCSFH SS condensate separators have been developed for high efficiency separation-removal of bulk liquids and large impurities from compressed air systems. Inside the housing a controlled rotation of the air results in a the centrifugal action, where liquids (water, oil) and large particles are forced out to the housing wall. These aerosols coalesce and accumulate at the base of the separator as a condensate pool. The turbulent free zone in the lower part of the cyclone housing prevents condensate from being picked up and ”carried over” into the air-stream. To discharge the condensate from the separator, it is essential to install an automatic or electronic condensate drain. USFH cyclone separators are also available in stainless steel version USFH SS.   Working Pressure 16 bar Flow Rate 840 to 7440 Nm³/h Port Size: DN65 to DN200 Operating Temp. 1.0C to 60C Material Stainless Steel     Â
